Loading sched_ext Schedulers from the Web GUI

Static Badge

Gthulhu v1.2.0 adds a Scheduler Runtime Config panel on the Nodes & Health page. It lets you enable or disable scheduling features at runtime and load built-in Linux sched_ext schedulers, such as scx_rustland, without redeploying the whole cluster.

This page explains how to use the Web GUI to inspect node health, apply scheduler runtime settings, and verify whether each node accepted the desired configuration.

Prerequisites

Component Requirement
Linux Kernel 6.12+ with CONFIG_SCHED_CLASS_EXT=y enabled
Gthulhu Manager Running and reachable from the Web GUI
Gthulhu Scheduler Deployed on every target node, typically as a DaemonSet
sched_ext scheduler The selected scheduler must be available in the scheduler runtime environment

If you are using Kubernetes, forward the manager service before opening the GUI:

kubectl port-forward svc/gthulhu-manager 8080:8080

Then open http://localhost:8080 and log in.

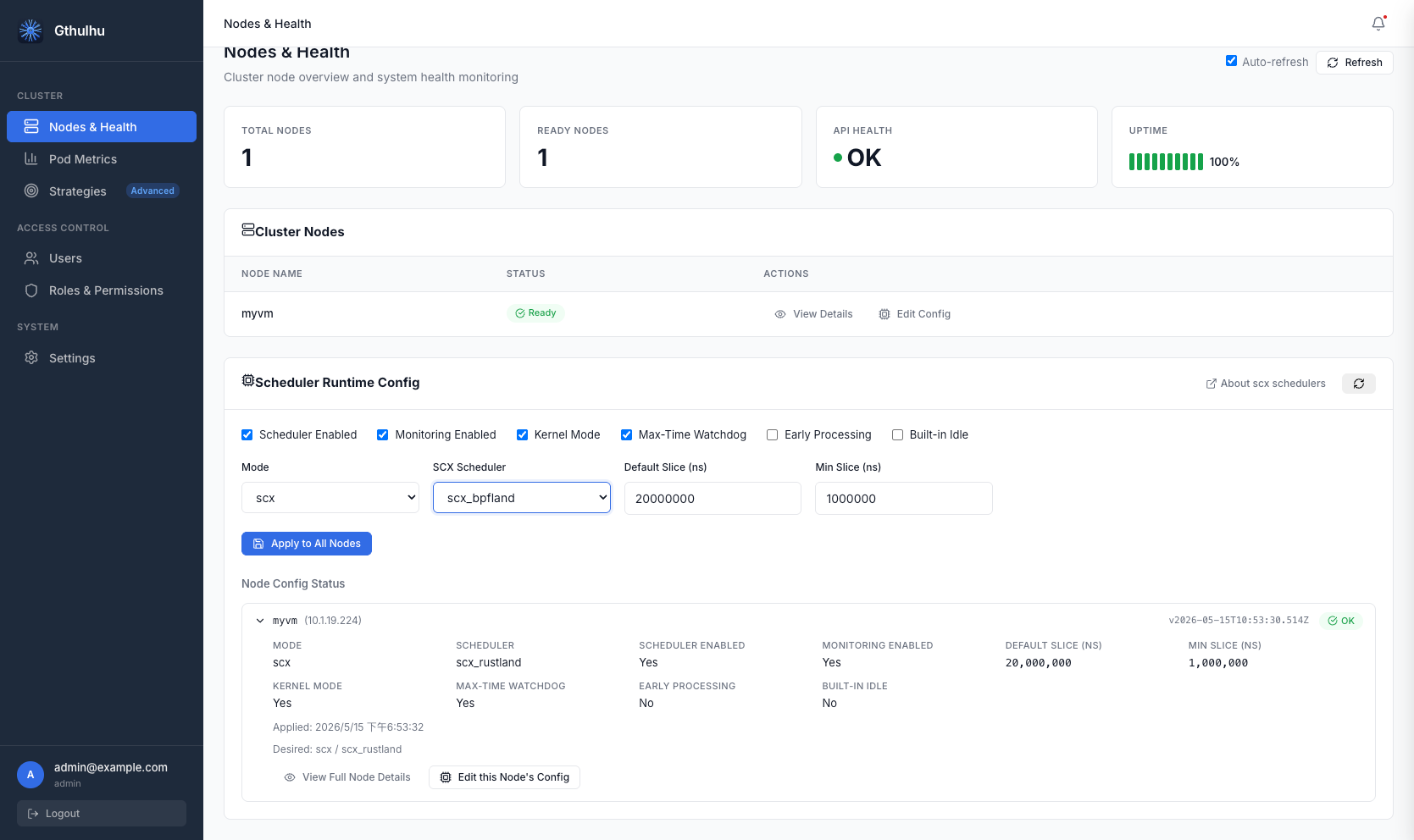

Opening the Runtime Config Panel

  1. In the sidebar, open Nodes & Health.
  2. Review the summary cards at the top of the page:
    • Total Nodes: total nodes known by Gthulhu.
    • Ready Nodes: nodes currently reporting ready status.
    • API Health: manager API health result.
    • Uptime: recent health-check history.
  3. In Cluster Nodes, click View Details to inspect a node or Edit Config to adjust that node's scheduler runtime configuration.
  4. Use the Scheduler Runtime Config card to apply a shared configuration to all nodes or inspect per-node status.

The About scx schedulers link opens external documentation about sched_ext scheduler choices and their expected workload characteristics.

Runtime Configuration Fields

The Scheduler Runtime Config card exposes the following settings:

Field Description
Scheduler Enabled Enables the scheduler runtime on target nodes. Disable it to stop applying custom scheduling behavior.
Monitoring Enabled Keeps runtime metrics and node status reporting active.
Kernel Mode Allows the scheduler to use kernel-side sched_ext execution when supported by the selected scheduler.
Max-Time Watchdog Enables the watchdog that protects the system from scheduler stalls or excessive execution time.
Early Processing Enables earlier processing of scheduling events when the selected scheduler supports it.
Built-in Idle Uses the scheduler's built-in idle handling path when available.
Mode Selects the runtime mode. Use scx to load a sched_ext scheduler.
Default Slice (ns) Default CPU time slice in nanoseconds.
Min Slice (ns) Minimum CPU time slice in nanoseconds.

Runtime Modes

Mode Description
none Disables custom scheduler loading and keeps the node on the default behavior.
gthulhu Uses Gthulhu's policy-driven scheduler path.
simple Uses a simplified scheduler mode for lightweight testing or fallback scenarios.
scx Loads a built-in sched_ext scheduler, such as scx_rustland, through the runtime loader.

Use scx when you want Gthulhu to delegate scheduling to one of the available sched_ext schedulers while still monitoring node state through the Gthulhu manager.

Applying a Scheduler to All Nodes

To apply the same runtime configuration across the cluster:

  1. Open Nodes & Health.
  2. In Scheduler Runtime Config, enable the desired toggles.
  3. Set Mode to scx.
  4. Set the slice values, for example:
    • Default Slice (ns): 20000000
    • Min Slice (ns): 1000000
  5. Click Apply to All Nodes.
  6. Wait for the Node Config Status list to refresh.

When the configuration is accepted, each node should show an OK badge and the desired mode/scheduler pair, for example scx / scx_rustland.

Cluster-wide changes

Applying a runtime configuration to all nodes changes scheduling behavior cluster-wide. Test the selected scheduler on a non-production node first when possible.

Per-Node Status

The Node Config Status section expands each node and shows the currently applied runtime configuration.

Field Description
Mode Runtime mode currently reported by the node.
Scheduler Loaded scheduler name, such as scx_rustland.
Scheduler Enabled Whether scheduler runtime control is enabled on the node.
Monitoring Enabled Whether the node is reporting monitoring data.
Default Slice (ns) Applied default CPU time slice.
Min Slice (ns) Applied minimum CPU time slice.
Kernel Mode Whether kernel mode is enabled.
Max-Time Watchdog Whether the watchdog is enabled.
Early Processing Whether early processing is enabled.
Built-in Idle Whether built-in idle handling is enabled.
Applied Time when the node accepted the configuration.
Desired Desired mode and scheduler requested by the manager.

Use View Full Node Details for node-level health information, or Edit this Node's Config to override settings for a single node.

  1. Start with Monitoring Enabled and verify that every node reports Ready.
  2. Apply scx mode to a single test node first.
  3. Confirm that Node Config Status shows OK and the expected scheduler name.
  4. Watch workload behavior with Pod Metrics and node health indicators.
  5. Roll the same configuration out with Apply to All Nodes after validation.

Troubleshooting

Symptom What to Check
Node does not show OK Confirm the scheduler pod is running on the node and can reach the manager API.
scx mode fails to apply Verify the kernel supports sched_ext and the selected scheduler is available in the runtime environment.
Node stops reporting status Check network connectivity, manager logs, and scheduler logs for failed status updates.
Workloads behave unexpectedly Revert to gthulhu, simple, or none, then inspect Pod Metrics before trying another scheduler.

You can also inspect scheduler pod logs for the selected node:

kubectl logs -n gthulhu-system -l app=gthulhu-scheduler --tail=100
